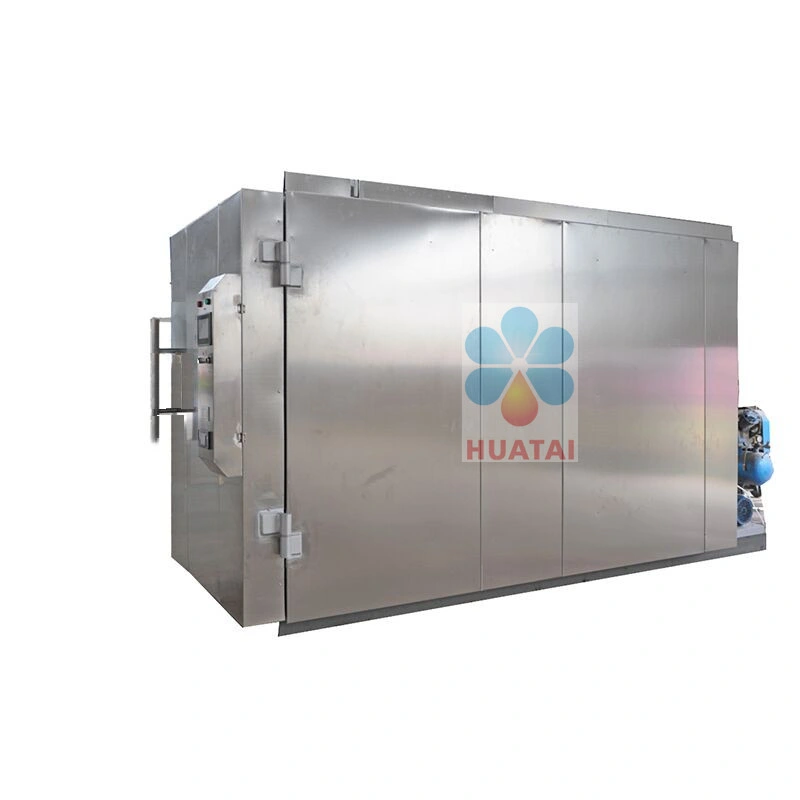

Integrated Intelligent 20CBM Ethylene Oxide Sterilizer,ETO Sterilizer
HTAJ series EO gas sterilization cabinet is low temperature sterilization equipment
HTAJ series large-scale EO gas sterilization cabinet is a kind of low-temperature sterilization equipment: This product is designed by using advanced computer technology, automation technology, welding technology and process on the basis of absorbing the advantages of similar products domestic and overseas.
Technical characteristics:
HTAJ series EO gas sterilization cabinet is a special equipment for low-temperature fumigation and sterilization of articles sealed in the sterilization room under a certain temperature, pressure, humidity and a certain action time with the mixture of pure ethylene oxide and ethylene oxide. Ethylene oxide gas is a very active chemical disinfectant, which can not only achieve broad-spectrum sterilization, but also achieve reliable sterilization effect.
Advantages:Simple operation, one-button operation, microcomputer control, simple and convenient, digital display of sterilization process.
Print records: Record and print sterilization information for sterilization process, which is convenient for verification and archiving.
Filtration system: The air inlet is equipped with a filtration system, which can effectively filter out germs andmicroorganisms and avoid secondary pollution during exhaustion.
Application:
Hysteroscopy, Laparoscopy, Laryngoscope, Probe, Rigid Endoscope, Hose Endoscope, Ophthalmic Lens, Fiber Optic Cable, Cranial Pressure Sensor, Cold Therapy Probe, Prostatectomy Device, Esophageal Dilator, Electrocautery Devices, defibrillation electrodes,laser head metal, glass, silicone, Chinese medicine and western medicine, human implants, masks, DNA, etc.
Technical Parameters
Installation:
Huatai Group has gathered professionals, concentrated technical forces on R & D and risen rapidly in the field of medical
instruments. Due to focusing on research, development and innovation, Angel has made a series of achievements in ethylene oxide sterilizer and other related fields.Intelligent operation of equipment is realized through combining with AI technology platform, it's convenient and safe and its sterilization effect exceeds customers' required standards. We always treat our customers with high standard and responsible attitude. The corporate philosophy of "Good conduct before doing things;Simple life, concentrate on work" has laid a solid foundation for the group to develop in the medical instruments industry.
Huatai Group is listed on New OTC Market (stock code: 837819),national high-tech enterprise, provincial contract-abiding and trustworthy enterprise,provincial engineering technology center, and has been awarded "Henan provincial outstanding and high-growth private enterprise " by provincial committee and government.
HTAJ series EO gas sterilization cabinet is low temperature sterilization equipment
HTAJ series large-scale EO gas sterilization cabinet is a kind of low-temperature sterilization equipment: This product is designed by using advanced computer technology, automation technology, welding technology and process on the basis of absorbing the advantages of similar products domestic and overseas.
Technical characteristics:
HTAJ series EO gas sterilization cabinet is a special equipment for low-temperature fumigation and sterilization of articles sealed in the sterilization room under a certain temperature, pressure, humidity and a certain action time with the mixture of pure ethylene oxide and ethylene oxide. Ethylene oxide gas is a very active chemical disinfectant, which can not only achieve broad-spectrum sterilization, but also achieve reliable sterilization effect.
Advantages:Simple operation, one-button operation, microcomputer control, simple and convenient, digital display of sterilization process.
Print records: Record and print sterilization information for sterilization process, which is convenient for verification and archiving.
Filtration system: The air inlet is equipped with a filtration system, which can effectively filter out germs andmicroorganisms and avoid secondary pollution during exhaustion.
Application:
Hysteroscopy, Laparoscopy, Laryngoscope, Probe, Rigid Endoscope, Hose Endoscope, Ophthalmic Lens, Fiber Optic Cable, Cranial Pressure Sensor, Cold Therapy Probe, Prostatectomy Device, Esophageal Dilator, Electrocautery Devices, defibrillation electrodes,laser head metal, glass, silicone, Chinese medicine and western medicine, human implants, masks, DNA, etc.
Technical Parameters
| Model | HTAJ-20 |
| Disinfection mode | Low temperature |
| Rated power | 35KW |
| Liner size: length*width*height (mm) | 3000*1200*1700 |
| Cabinet size: length*width*height (mm) | 3950*1570*2370 |
| Covering area: length*width*height (mm) | 12000*5000*3000 |
| Working pressure | -60Kpa~0 |
| Adjustable range of working temperature | 30~50ºC |
| Working humidity | 30%~80% |
| Sterilization time | 3-99 hours (adjustable) |
| Material of disinfection room | Anti-corrosion SS304 |
| Weight(kg) | 8000 |
| Face mask Qty during single sterilization | 380K pieces |

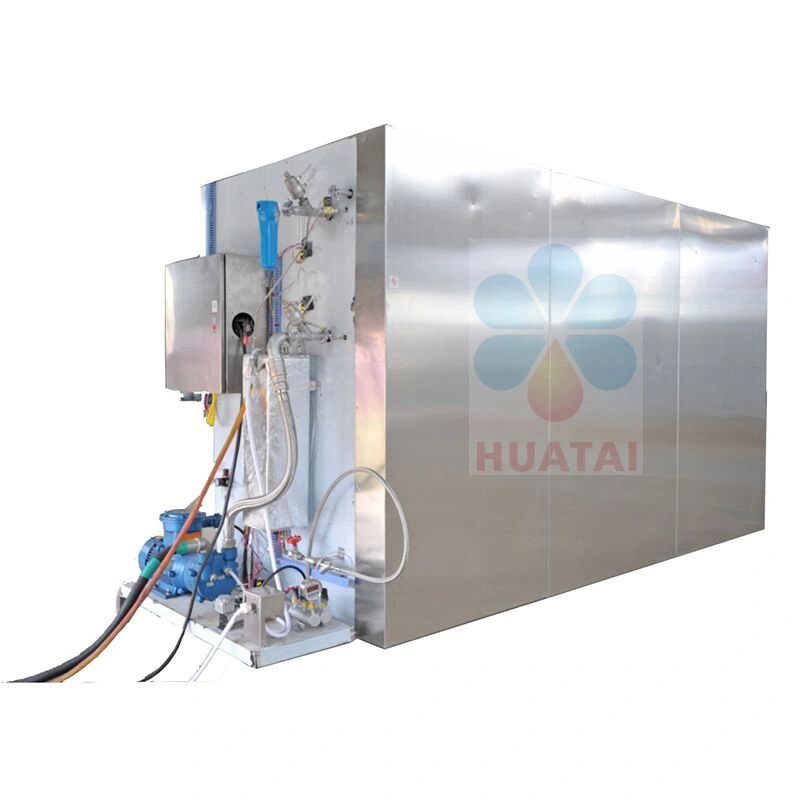

Installation:
- Connect the power, connect the main wire from power distribution cabinet;
- Connect the air hose,connect the air hose of sterilizer to air compressor or air tank;
- Connect water inlet, connect water inlet pipe with water supply;
- Connect water and air drainage pipe to sewage outlet;
- Connect overflow pipe to sewage outlet;
- Connect dosing pipe, from dosing inlet to ethylene oxide bottle, dosing pipe is stainless steel hosepipe.
